E-Bike

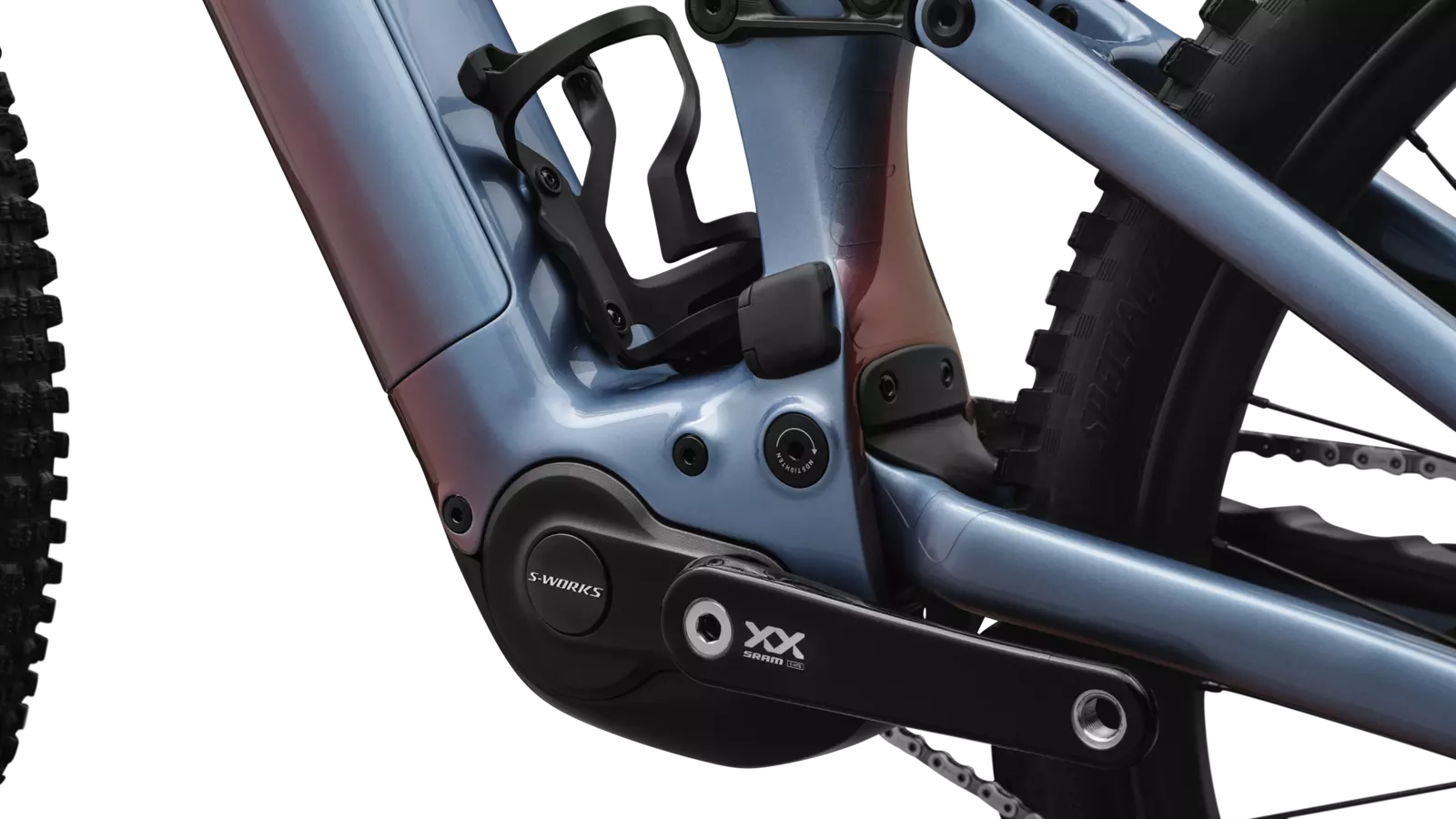

Motor

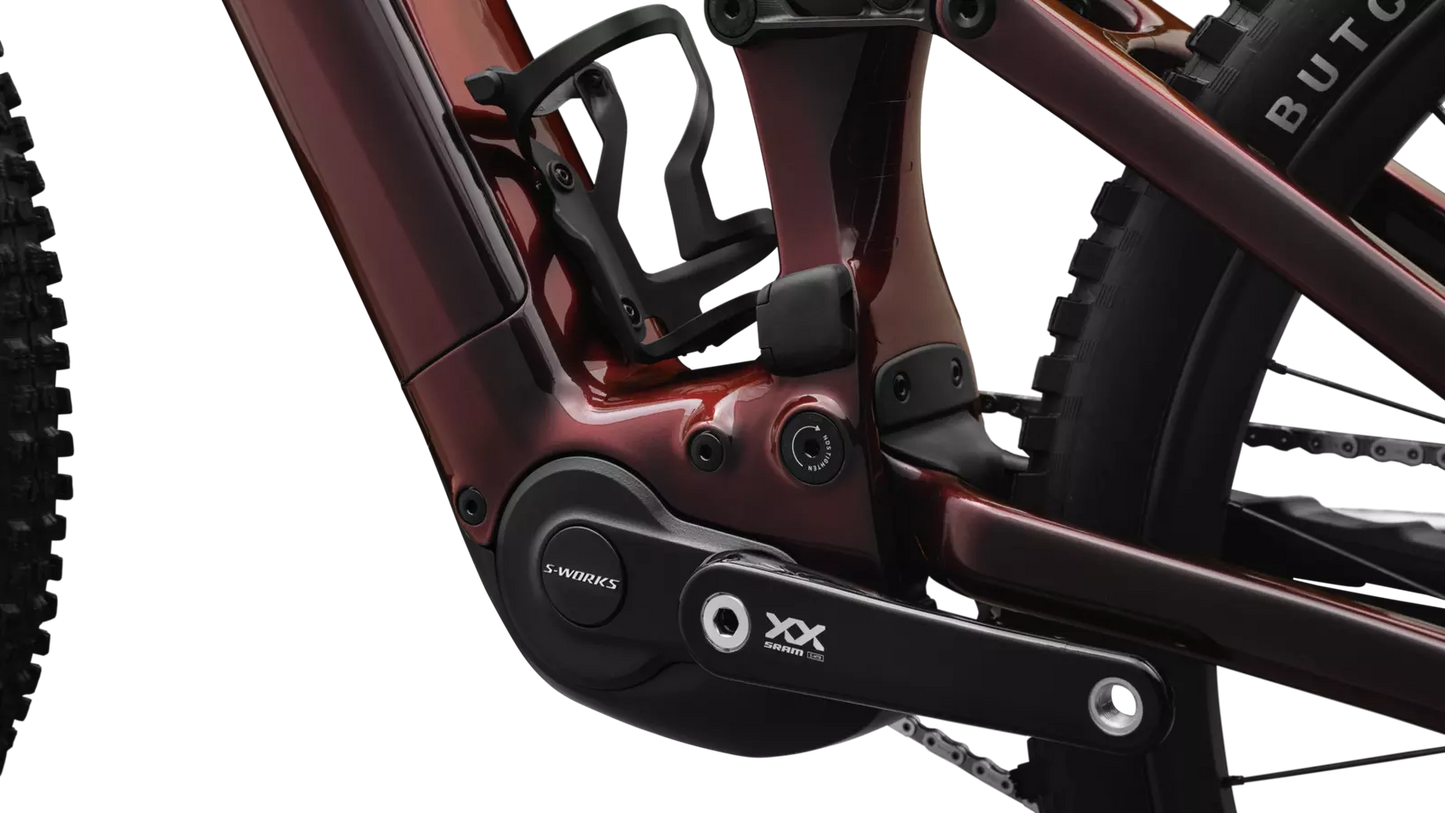

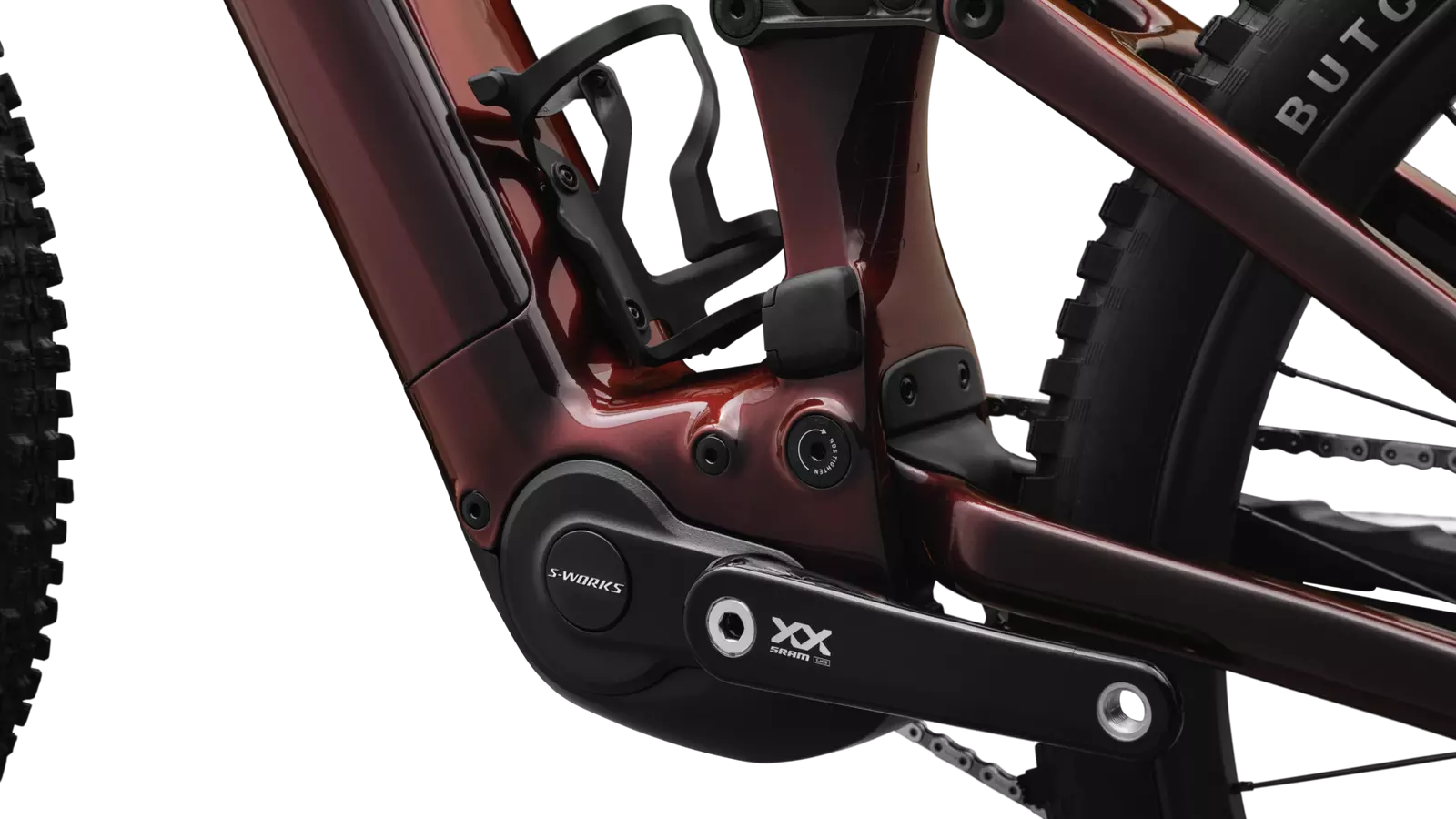

All New Specialized 3.1 S-Works motor, 111Nm torque, 720W power
Battery
840wh battery

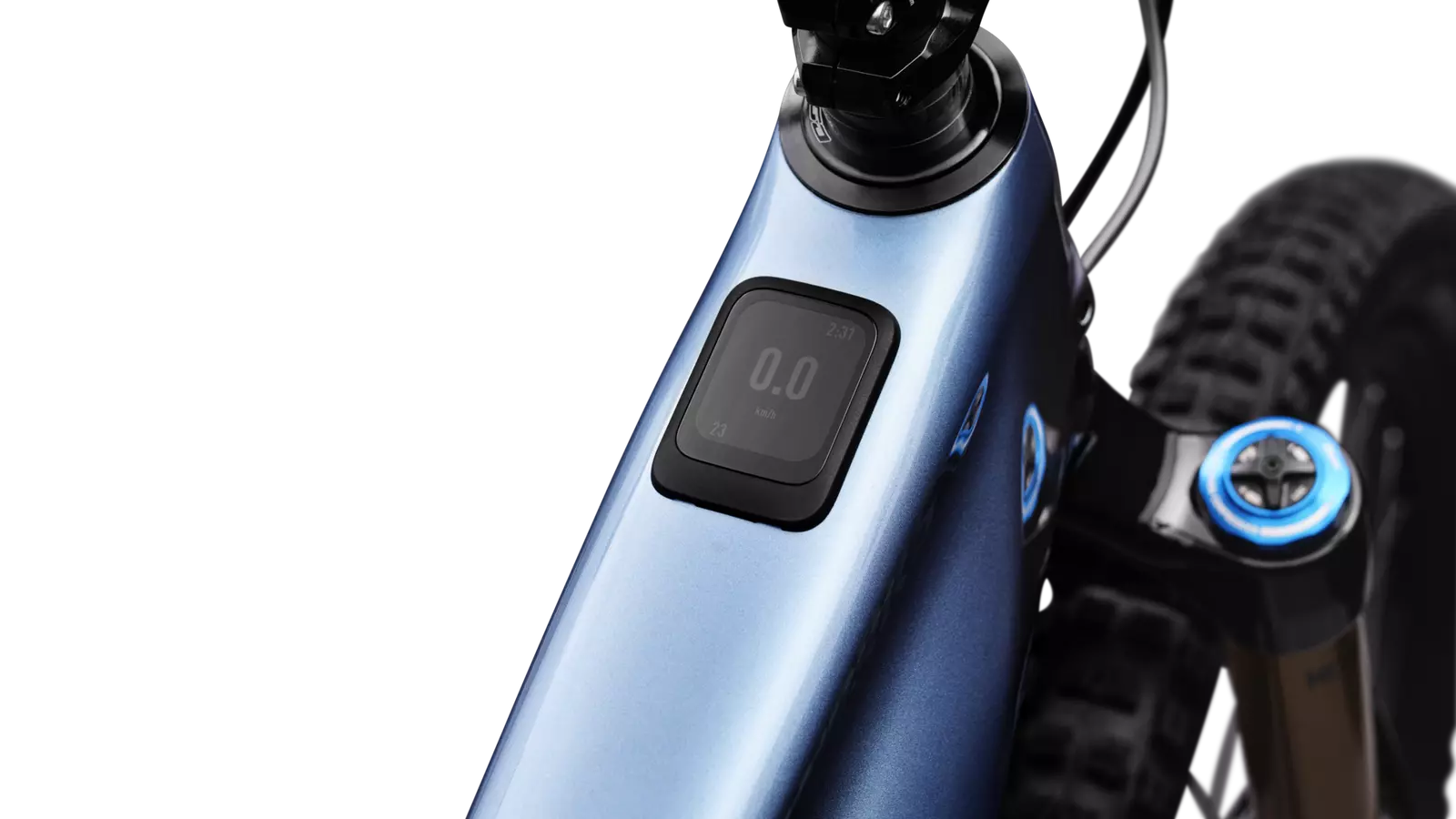

UI/Remote

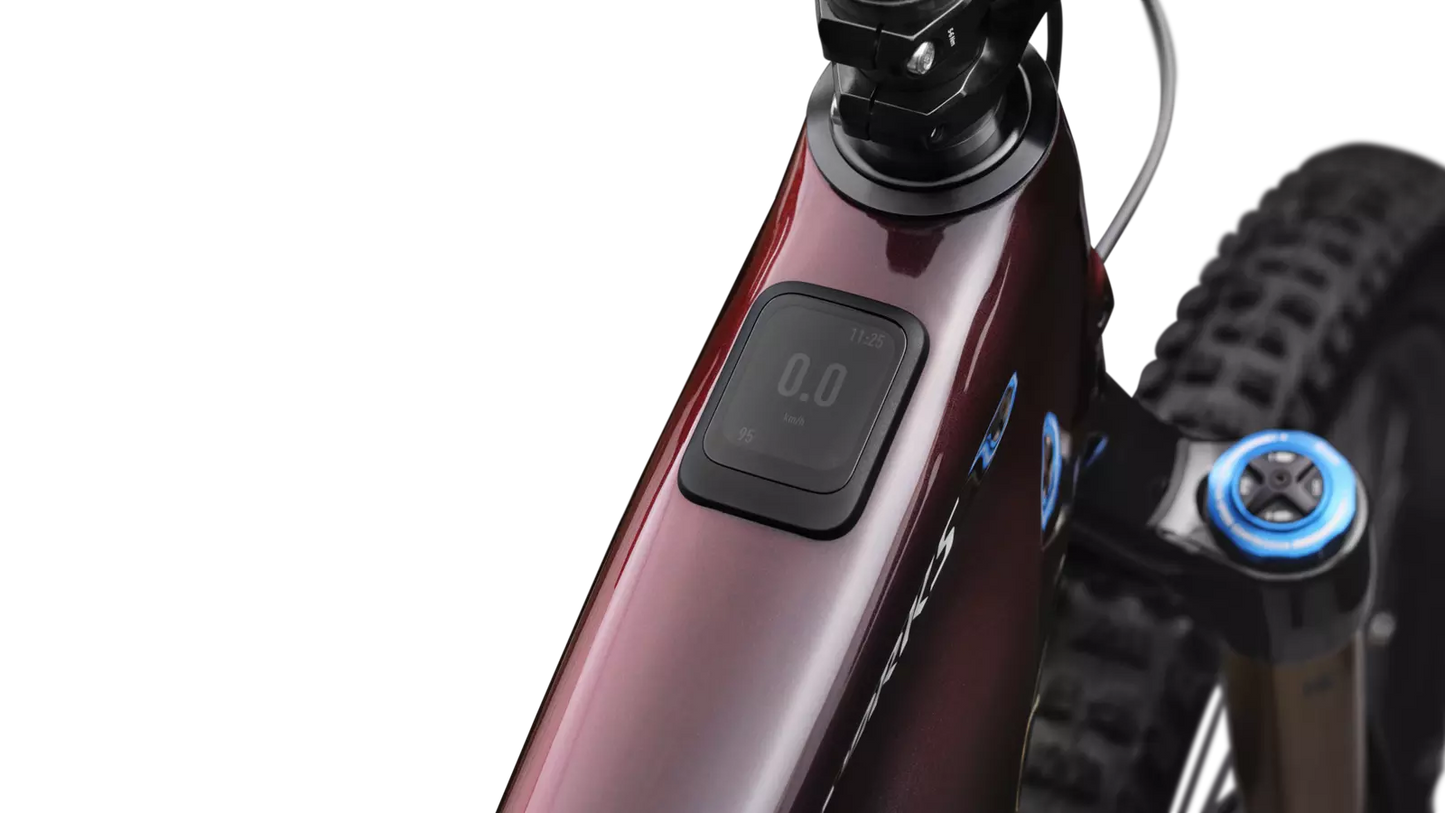

All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized app
Charger
Specialized 12amp smart charger, 4 different charge functions including Standard, Fast, Eco, and charge to 80%
Frameset
Frame

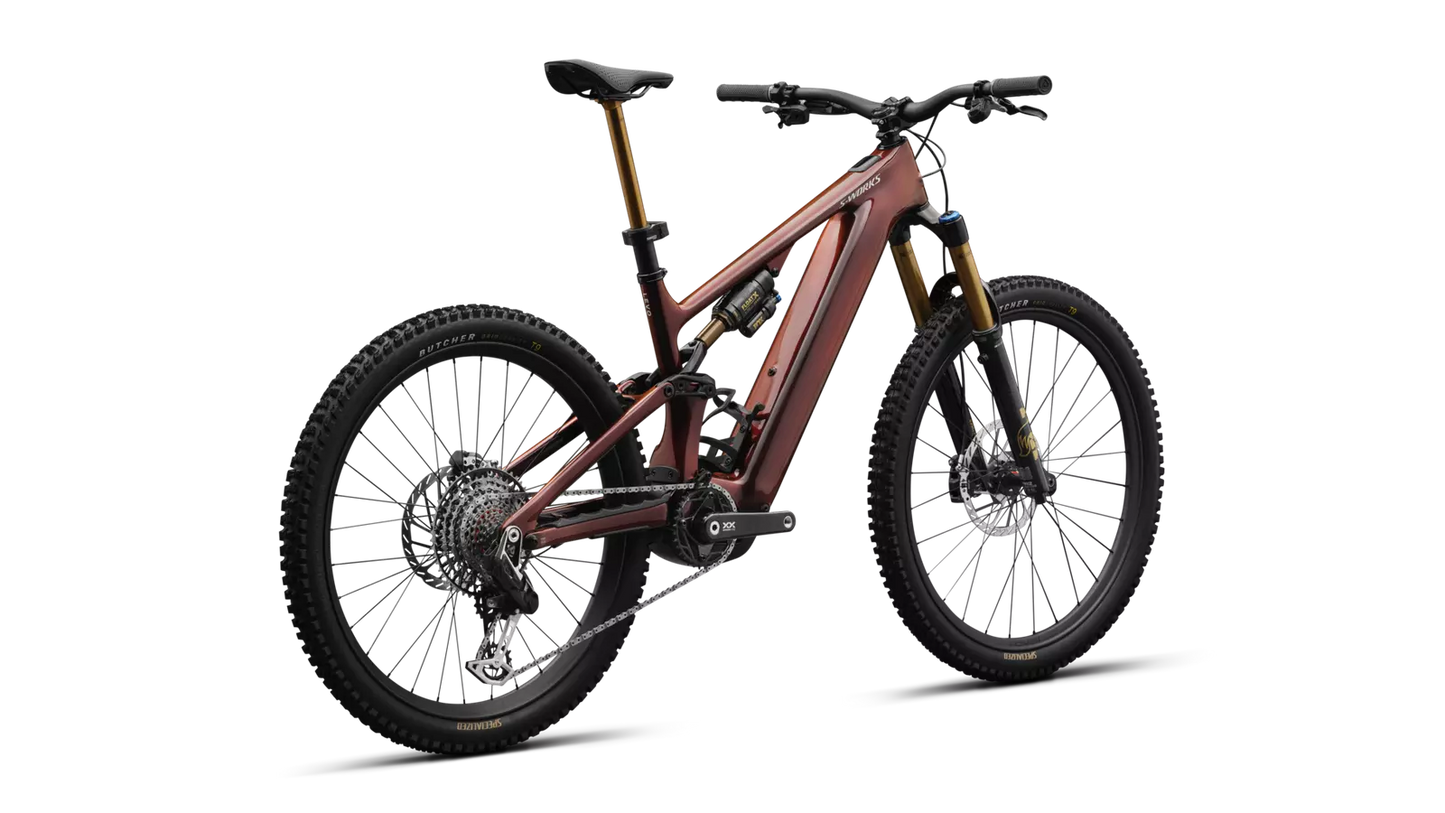

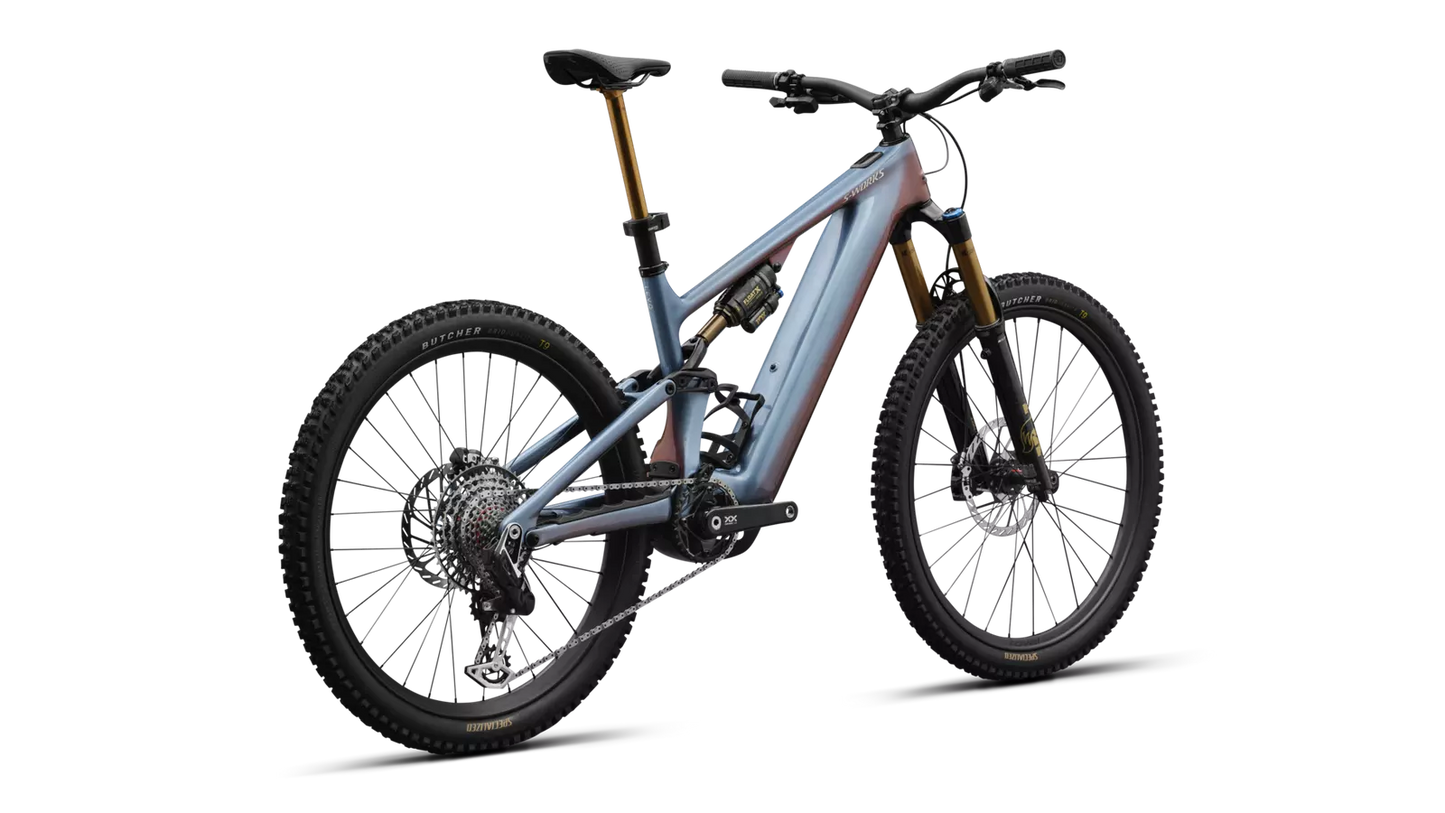

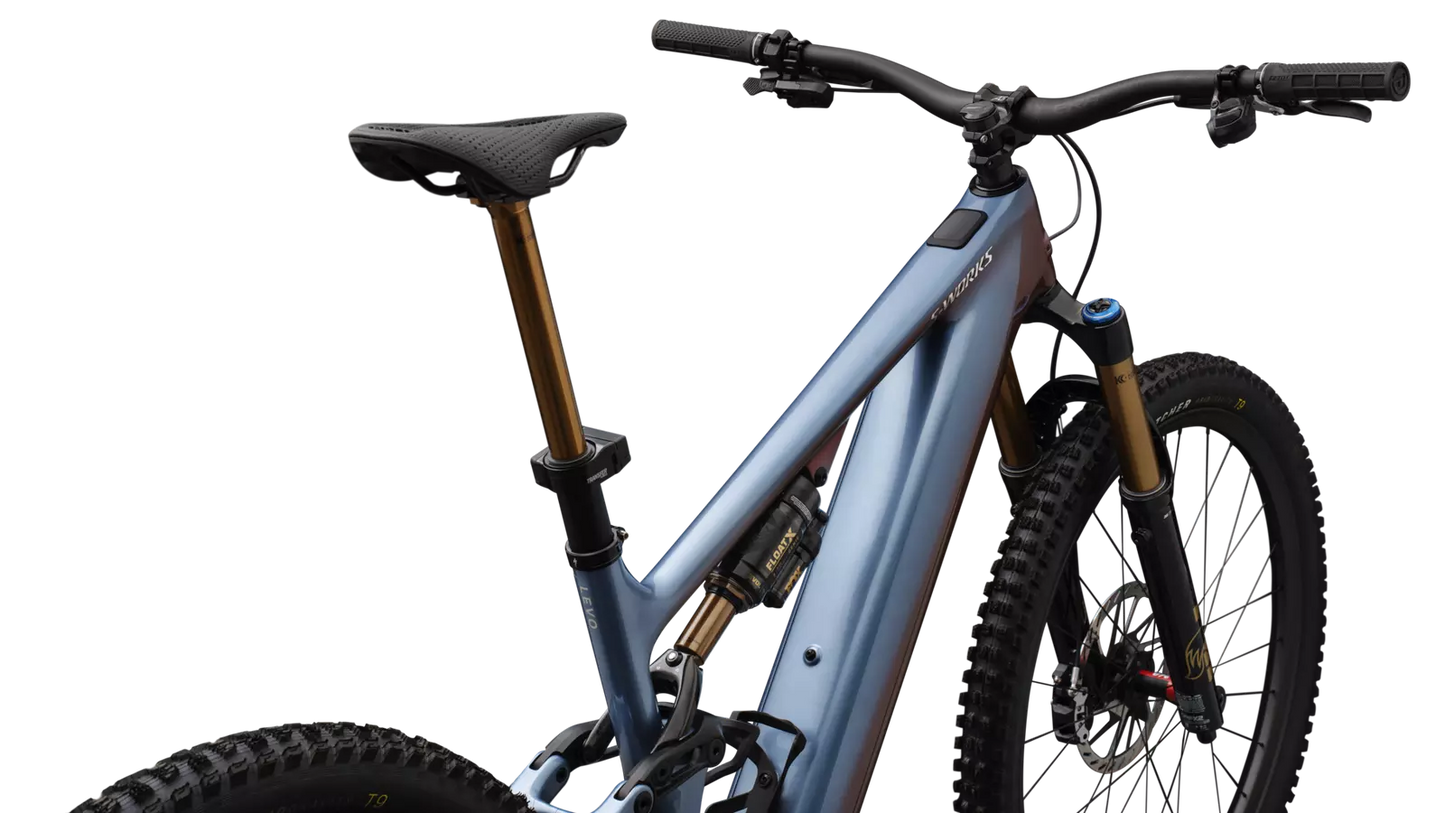

All new S-Works Levo 4 frame with carbon shock extension, FACT 11m carbon chassis and rear-end, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, w/ SWAT storage, 150mm of travel, side entry battery, fork travel up to 180mm
Seat Binder
Alloy, 38.6mm
Suspension

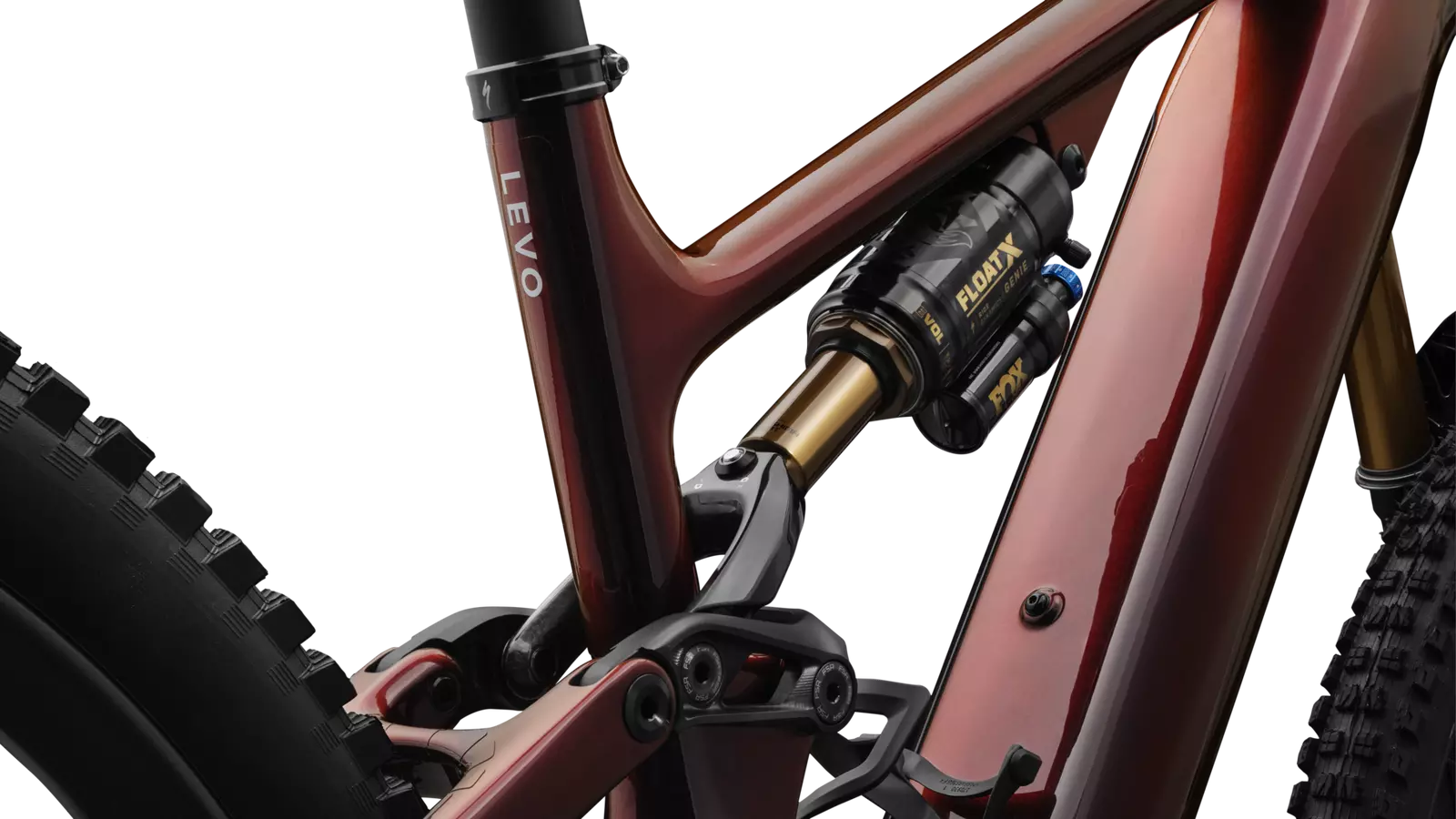

Rear Shock

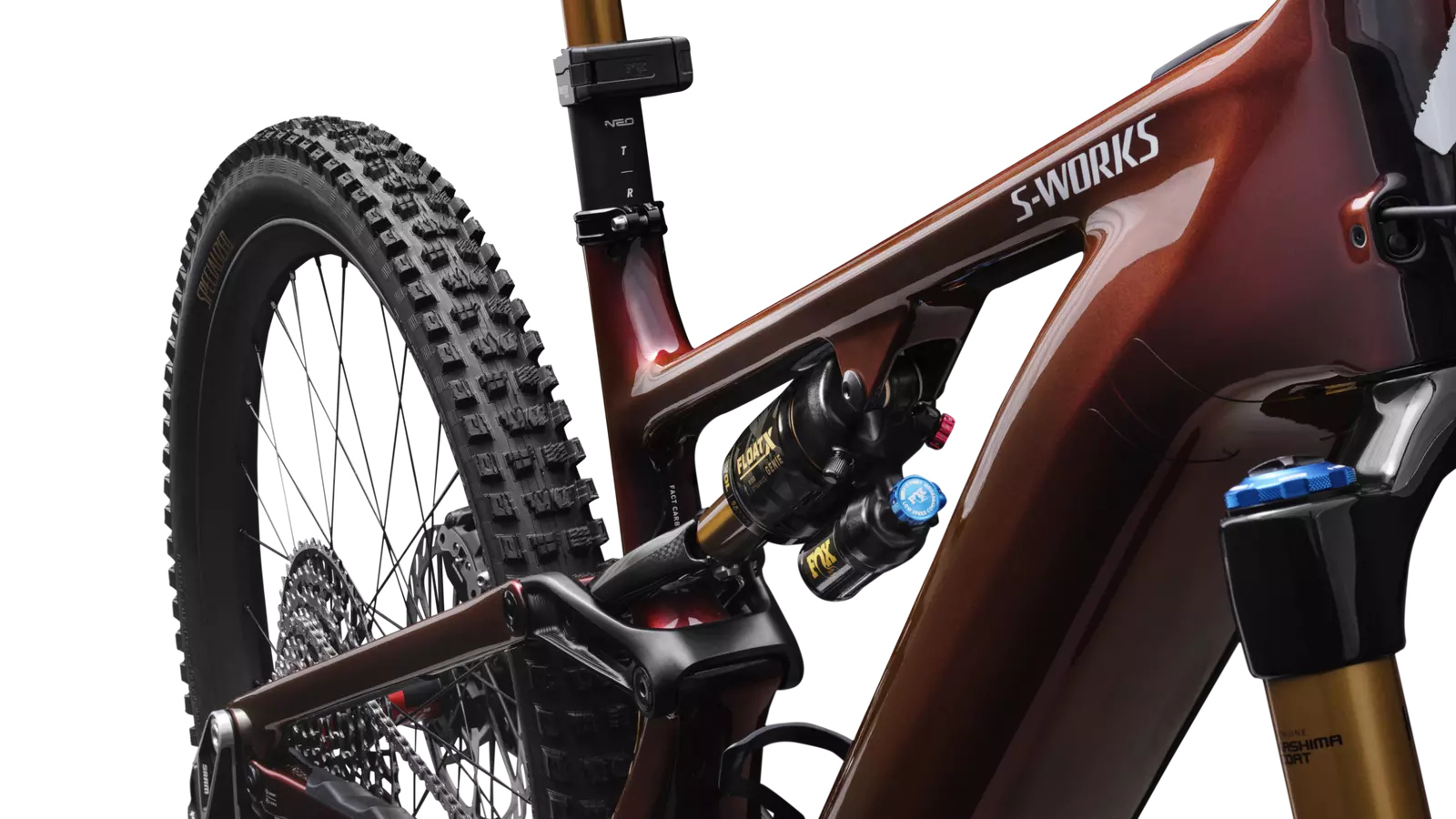

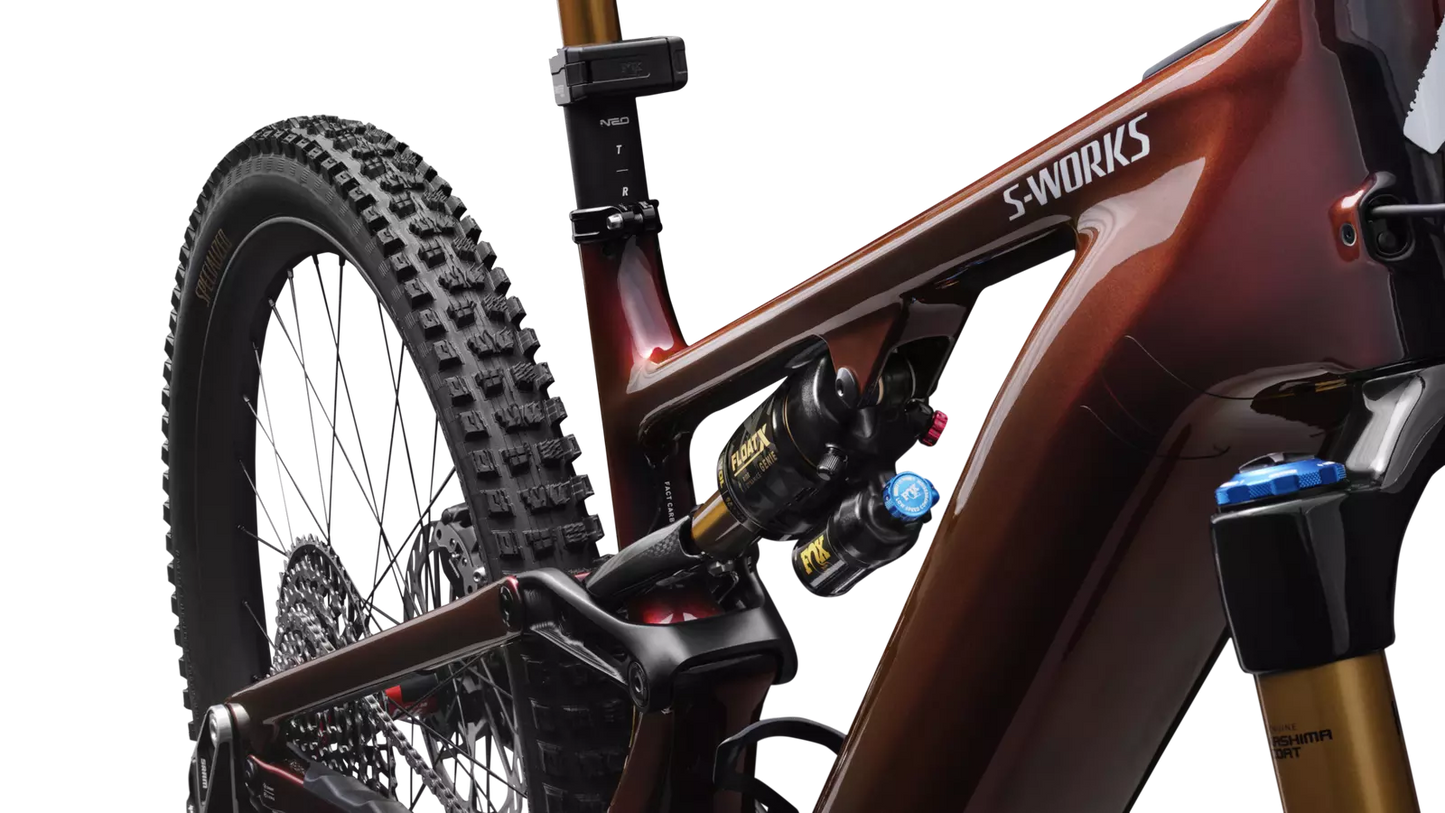

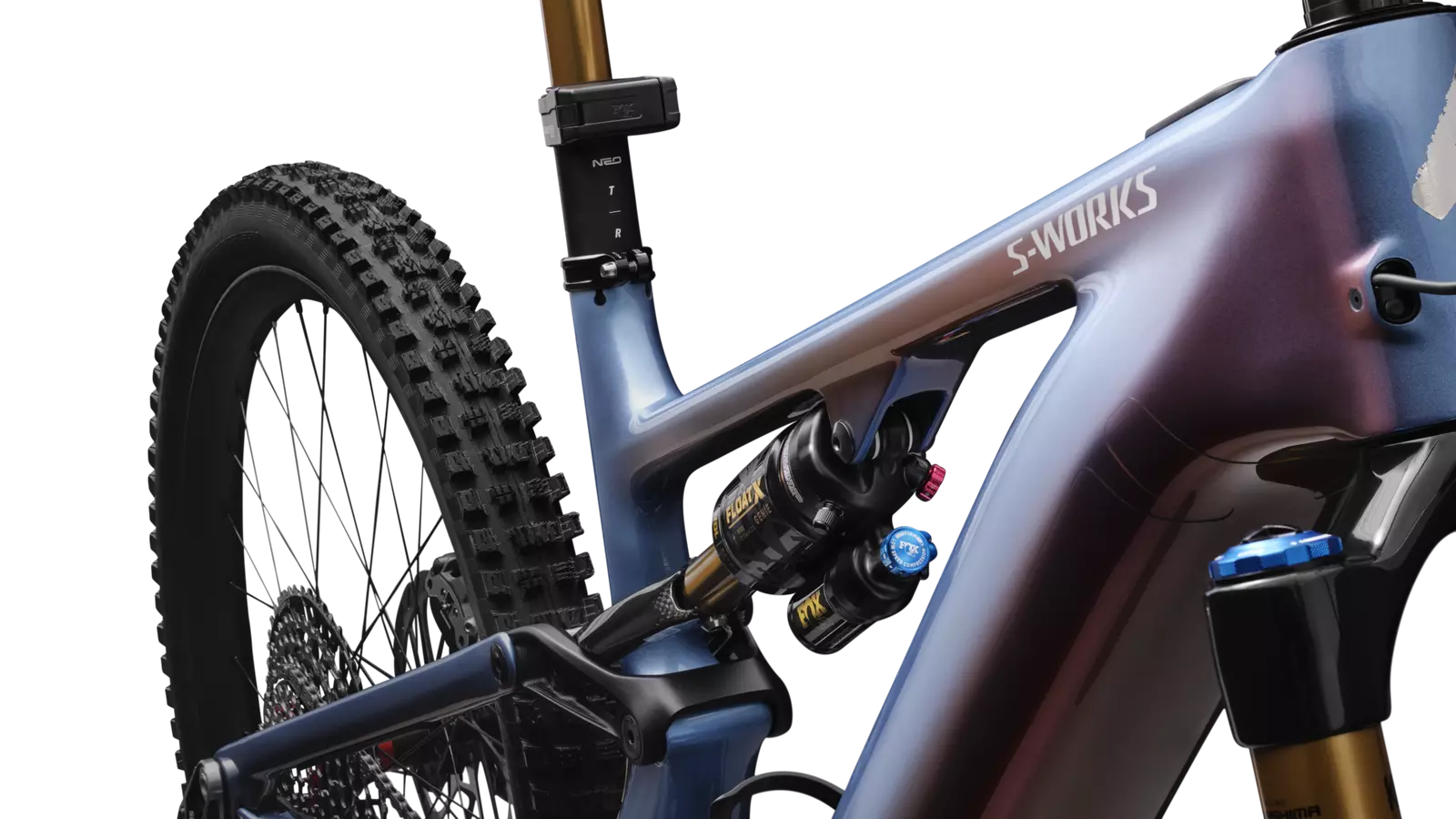

FOX FLOAT X Factory with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever w/3 setting Open mode tuning range, LSR adjustment, 210x55mm
Fork
FOX FLOAT 38 Factory, GRIP X2 damper, HS and LS rebound and compression adjustment, 15x110mm axle, 44mm offset, 160mm of travel
Brakes
Front Brake
SRAM Maven Ultimate, 4-piston caliper, hydraulic disc, 220mm HS2 Rotor
Rear Brake
SRAM Maven Ultimate, 4-piston caliper, hydraulic disc, 200mm HS2 Rotor
Drivetrain
Shift Levers
SRAM AXS POD Ultimate Controller with Discrete clamp
Rear Derailleur
SRAM XX Eagle Transmission Derailleur
Cassette
SRAM XX Eagle Transmission Cassette, 12spd, 10-52t
Chain
SRAM XX EagleTransmission Flattop Chain
Crankset
SRAM XX Carbon crank, 55mm Chainline, ISIS interface, 160mm
Chainrings
SRAM 34t T-Type chainring, 104 BCD, steel
Wheels & Tires
Front Tire
Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
Front Wheel
Roval Traverse HD 29", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 240 DEG, 15x110mm, 28h
Rear Tire
Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 27.5x2.3"
Rear Wheel
Roval Traverse HD 27.5", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 240 DEG, 12x148mm, 32h
Inner Tubes
Standard, Presta Valve
Cockpit
Stem
Industry 9 Mountain stem, 35mm clamp, 40mm length
Handlebars

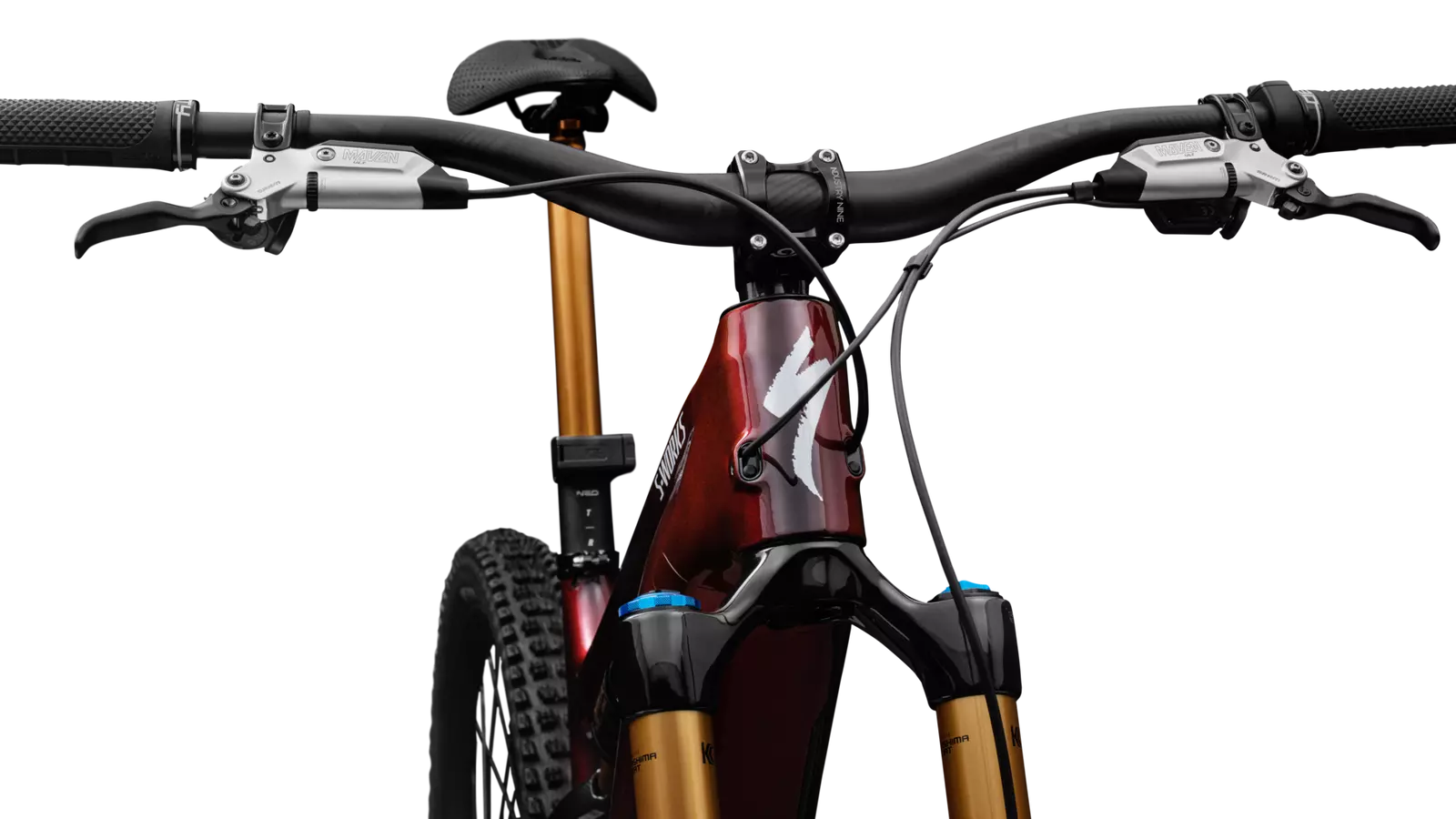

RaceFace Era Carbon, riser bar, 5-degree upsweep, 8-degree backsweep, S2:20mm Rise, S3-S6:40mm Rise, 800mm
Grips
Deity Lockjaw grips
Saddle
Specialized Power Pro Mirror w/hollow Ti rails
SeatPost
FOX Transfer NEO Factory, 34.9, S2: 150mm, S3: 175mm, S4-S6: 200mm
Accessories
SWAT
SWAT internal downtube storage
Product Details
Product ID
218698
Compliance Certification
As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS.
For information on lithium-ion battery standards and regulations in New York City, visit: www.nyc.gov/fdny/batteries
Weight
Weight
23.68kg (52 lb, 3.3 oz)
Weight Size
S4
